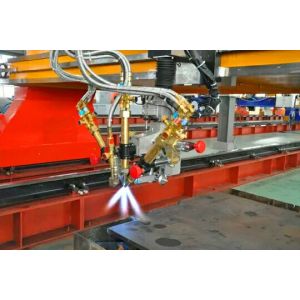

Gantry type CNC oxy-fuel bevel Cutting Machine
Model: CNCSG4000-F
NO | Descriptions | Specification |
1 | Track Width (mm) | 4000 |
Rail length (mm) | 14000 | |
Effective Cutting Area(mm) | 3200x12000 | |
Drive | Y axis Panasonic AC servo motor *2set | |
X axis Panasonic AC servo motor *1set | ||
Max traveling speed | 12000 mm/min | |
2 | Torch Moving Station | Total Three 2 Sets of Moving Station Station 1: one oxy-fuel Torch Station 2: one oxy-fuel Torch |
3 | Flame Torch | Cutting Thickness 5-120mm Cutting Speed:50-800m/min |
4 | Controller | SJTU-F3200 |
5 | Nest Software | Australia FASTCAM (professional Ver.) |
6 | PLC | Delta* 1set Taiwan |
Electric Components | Schneider | |
Cables | CE approached cable | |
7 | Water Surface Cutting Table | Made by user as per drawing |
Accuracy
Positioning Accuracy | ±0.5mm/10000mm |
Repeatability | ≤±0.1mm |
Speed setting error | ≤±5% |
THC accuracy | ≤±0.5mm |
Length of a side Error(mm) | ±0.5mm |
Base Point Return Error | ±0.4mm |
Intersection point Error | ±0.5mm |
Lineation forward-reverse Error | ±0.2mm |
Working Conditions
Power Supply Temperature Humidity Surroundings | Machine : 220v±10%;50Hz~60Hz(Customized) Plasma System: 3×380v±10%;50Hz~60Hz(Customized) -10℃-50℃ <90% /No Condensation Ventilate, No big shake |
Oxy-fuel cutting gas type/Quality | Oxygen:0.5-0.8MPa Purity: 99.5%; Flow:1.0M3/Min Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa |
|
|
